THE FAMILY

This 2-story cottage is just under the maximum allowable square footage for a backyard cottage in Seattle. The design efficiently focuses the bathrooms and kitchen in the center of the floor plan, while leaving the rooms on either side open to varying, flexible arrangements. The living room could become a spare bedroom, and the dining space could then encompass both living and dining. The location of the main entrance can be determined based on the preferred use of the ground floor spaces.

FEATURES

GROSS FLOOR AREA: 790 SF

1 LIVING

1 DINING / FLEX ROOM

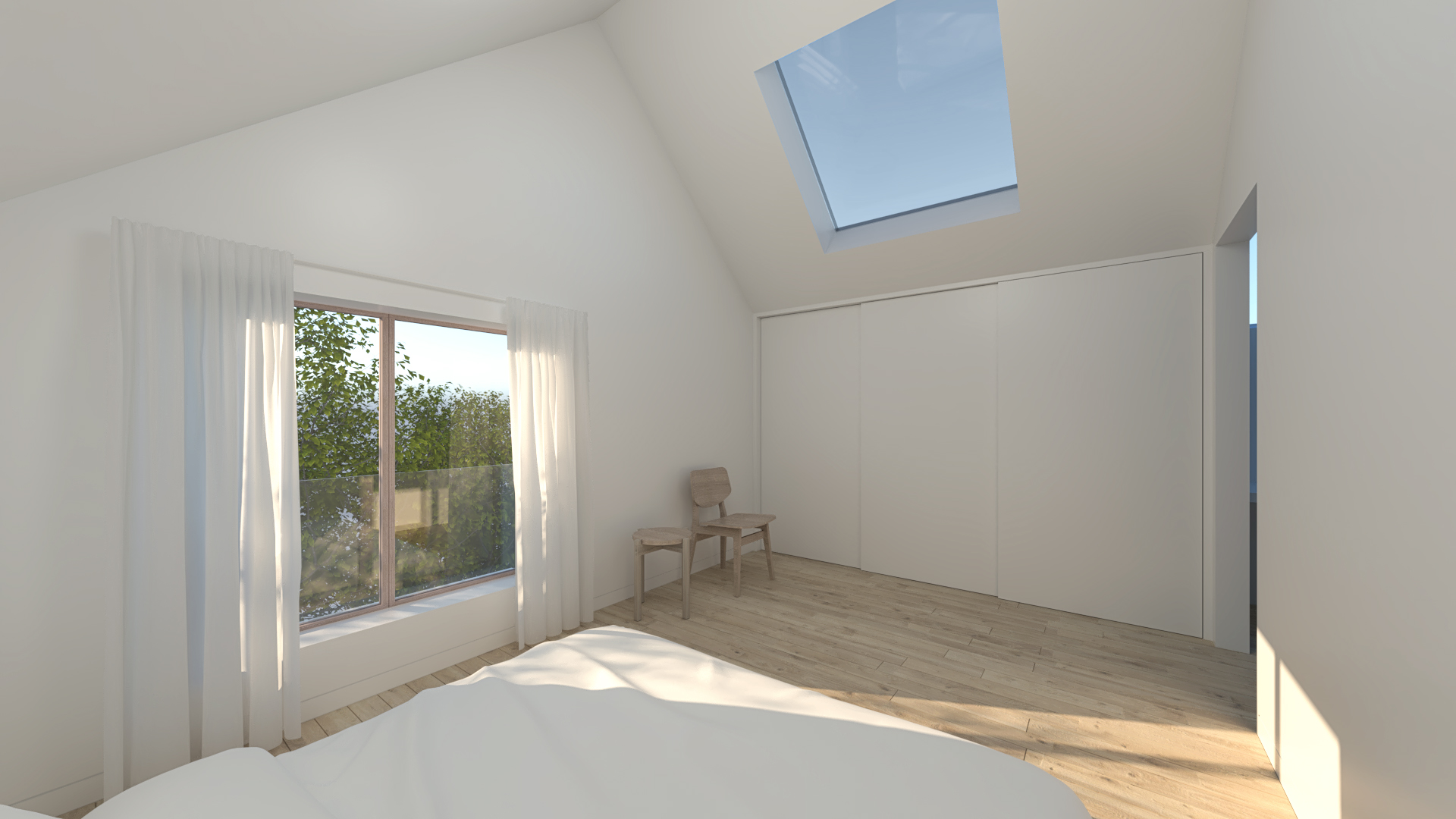

1 BEDROOM OR 2 BEDROOM (OPTIONAL)

LOT

COVERAGE AREA: 558 SF

PITCH HEIGHT: 22’-0”

BASE HEIGHT: 16’-0”

LENGTH: 30’-0”

Construction Package

$4,000

Full architectural drawing set, which includes the drawings and documentation required for both construction and permitting, as well as material specifications.

List of Documents:

Cover Sheet

Plans

Exterior Elevations

Building Sections

Interior Elevations

Interior Diagrams and Construction Details

Assemblies

Schedules

Material Specifications

Finish Schedules

For a project of this size, it is typical for a builder to take on the site plan, coordination with engineers (including structural, electrical, and mechanical), and energy calculations. This option does not include our involvement in these tasks.

Construction Package + FULL Permitting ASSISTANCE

$9000

Full architectural drawing set + our continued involvement through permitting to add structural documents, energy code calculations, and a site plan.

Any AHOUSE can be customized to fit your site and personal requirements. If your needs call for a more individualized design, contact us to learn about our custom architectural services.
